Expert Tips & Tricks: How To Calibrate A Torque Wrench?

To calibrate a torque wrench, secure it in a vise and use a calibration device. Adjust until readings match the standard.

A torque wrench ensures precise tightening of bolts and nuts, crucial for various mechanical tasks. Accurate calibration is essential for maintaining its reliability and performance.

Regular calibration helps prevent over-tightening or under-tightening, which can lead to equipment damage or safety hazards.

Calibration involves comparing the wrench’s readings with a known standard and making necessary adjustments. Proper calibration extends the tool’s lifespan and ensures consistent accuracy. Regular checks, at least annually, are recommended for optimal performance.

By following calibration procedures, you guarantee the tool’s precision, enhancing safety and efficiency in your projects.

Introduction To Torque Wrenches

Torque wrenches are vital tools for anyone working with bolts. These tools ensure bolts are tightened to the correct tension. Incorrect tension can lead to safety issues or damage. Understanding how to calibrate a torque wrench is essential. Let’s explore the basics first.

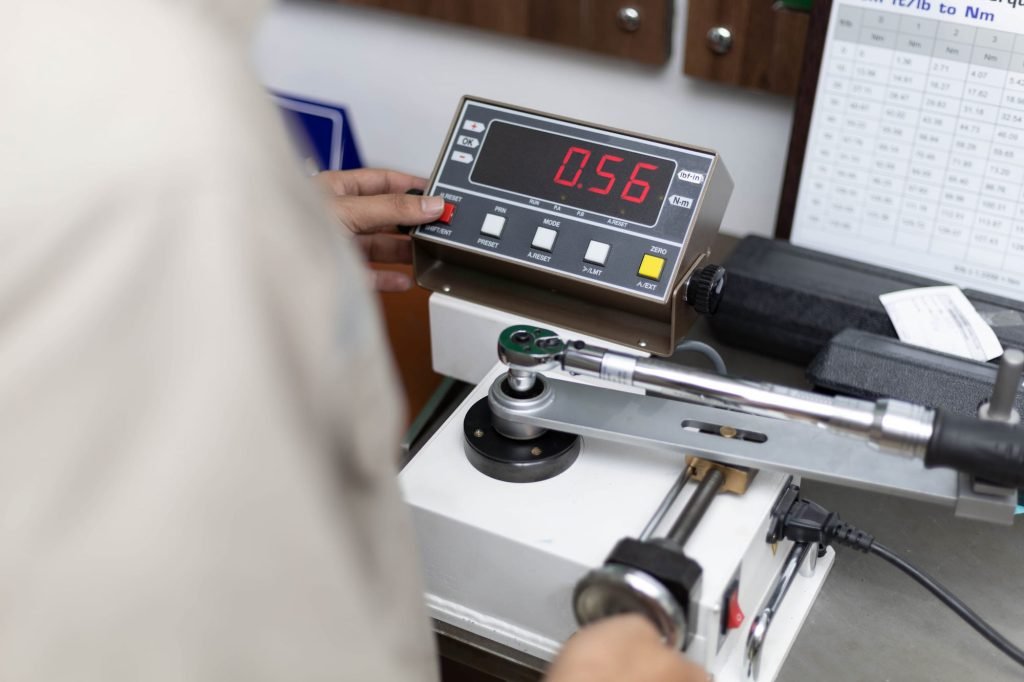

Credit: labtesting.com

What Is A Torque Wrench?

A torque wrench is a tool used to apply a specific torque to a fastener. It usually looks like a regular wrench but with special features. It ensures bolts are tightened to the right level.

Torque wrenches come in various types:

• Click Type: Produces a clicking sound at the set torque.
• Beam Type: Has a scale to show the torque applied.
• Dial Type: Features a dial to set and read the torque.
• Digital Type: Uses electronics to set and read torque.

Each type has its unique advantages. Choose the one that fits your needs best.

Importance Of Calibration

Calibration is crucial for maintaining the accuracy of your torque wrench. Without it, you risk under-tightening or over-tightening bolts.

Here are some reasons why calibration is vital:

1. Ensures Accuracy: Keeps the torque wrench precise.
2. Safety: Prevents potential safety hazards.
3. Tool Longevity: Prolongs the life of the wrench.
4. Compliance: Meets industry standards and requirements.

Regular calibration is recommended. It’s usually done annually or after 5,000 uses. Calibrating your torque wrench ensures it performs effectively every time.

Types Of Torque Wrenches

Torque wrenches come in various types, each suited for specific tasks. Understanding the different types helps you choose the right tool. This ensures accurate calibration and efficient use.

Beam Type

Beam type torque wrenches are simple and durable. They have a long beam and a pointer. When you apply force, the pointer moves along a scale. This type is easy to use and maintain. It is ideal for basic tasks.

• Simple and cost-effective
• Low maintenance
• Suitable for light-duty tasks

Click Type

Click type torque wrenches are very popular. They make a clicking sound when the preset torque is reached. This sound helps you stop applying force at the right time. They are more precise than beam types.

• Audible click for precision
• Adjustable torque settings
• Great for automotive work

Digital Type

Digital type torque wrenches are the most advanced. They have a digital display showing the exact torque value. They can store multiple torque settings. They offer the highest precision.

• Digital display for accuracy
• Stores multiple settings
• Ideal for professional use



When To Calibrate

Knowing when to calibrate your torque wrench is crucial for accurate performance. Calibration ensures your tool measures torque correctly. It prevents over-tightening or under-tightening, which can cause damage or safety issues. Calibration should be part of your regular tool maintenance routine.

Frequency Of Use

The frequency of use determines how often you should calibrate your torque wrench. If you use the tool daily, calibrate it every 3 months. For weekly use, calibrate it every 6 months. Monthly users should calibrate their wrench once a year.

Usage Frequency	Calibration Interval
Daily	Every 3 months
Weekly	Every 6 months
Monthly	Every year

Signs Of Miscalibration

Watch for signs of miscalibration. These signs indicate your torque wrench needs calibration:

• Inconsistent torque readings
• Unusual noises or clicks
• Visible wear and tear

If you notice any of these signs, calibrate your torque wrench immediately. Regular checks ensure the tool’s accuracy and longevity.

Credit: www.wikihow.com

Tools Needed For Calibration

Calibrating a torque wrench ensures accurate measurements and extends its lifespan. To perform calibration, specific tools are necessary. These tools ensure the calibration process is precise and efficient.

Calibration Device

A calibration device is essential. It verifies the accuracy of your torque wrench. This device should be of high quality. It measures the force applied by the wrench. Ensure it is properly maintained.

The calibration device should have a clear display. It must show precise readings. Many devices come with digital displays. These are easier to read. Some devices also have memory functions. This helps in storing multiple readings.

Reference Torque Wrench

A reference torque wrench is used as a standard. It ensures the accuracy of your wrench. This reference wrench should be recently calibrated. It must have a traceable calibration certificate.

Here is a simple table to understand the tools needed:

Tool	Description
Calibration Device	Measures the force applied by the torque wrench.
Reference Torque Wrench	Standard wrench for accuracy comparison.

Both tools are crucial for proper calibration. They ensure your torque wrench works perfectly. Always use these tools for the best results.

Step-by-step Calibration Process

Calibrating a torque wrench is essential for accurate measurements. Follow these steps to ensure your wrench is calibrated correctly.

Preparation Steps

• Gather necessary tools: torque wrench, calibration device, and logbook.
• Clean the torque wrench to remove any dirt or grime.
• Set the wrench to zero and check for any visible damage.

Calibration Procedure

1. Attach the wrench to the calibration device securely.
2. Set the calibration device to the desired torque value.
3. Apply force to the wrench until it clicks or indicates torque.
4. Record the reading in your logbook.
5. Repeat the process at different torque settings for accuracy.

Ensure the readings match the calibration device values. If not, adjust the wrench accordingly.

Torque Setting	Calibration Reading	Adjustment Needed
10 Nm	9.8 Nm	Yes
20 Nm	20 Nm	No
30 Nm	30.2 Nm	Yes

Repeat the calibration regularly to maintain accuracy. Store the wrench properly after calibration.

Common Calibration Errors

Calibrating a torque wrench is crucial for maintaining accuracy. Yet, many people make common mistakes. These errors can lead to inaccurate readings and potential damage. Understanding these mistakes can help you avoid them.

Incorrect Settings

One of the most common errors is using incorrect settings. Ensure the torque wrench is set to the correct value. Always double-check the settings before use. Even a small mistake can lead to inaccurate torque.

• Double-check the torque value
• Ensure the unit of measurement is correct
• Use a reliable source for torque specifications

Errors in settings often occur due to oversight. Make sure to read the manual carefully. Familiarize yourself with the wrench’s settings. Never assume the settings are correct without checking.

Improper Technique

Improper technique is another common calibration error. Always use a consistent method when calibrating. Variations in technique can affect the accuracy.

1. Hold the wrench correctly
2. Apply force steadily
3. Avoid jerky movements

Using an improper technique can lead to inconsistent results. Ensure you apply force in a steady manner. Avoid sudden movements which can throw off the calibration. Practice makes perfect; be consistent.

Common Errors	Correction
Incorrect Settings	Double-check and verify
Improper Technique	Use consistent methods

Expert Tips For Accurate Calibration

Calibrating a torque wrench ensures precision in your work. Accurate calibration helps maintain the tool’s reliability. Here are expert tips to achieve accurate calibration.

Consistent Pressure

Applying consistent pressure is vital for calibration. Ensure you use steady force during the process. Inconsistent pressure can lead to inaccurate readings.

Follow these steps to maintain consistent pressure:

• Hold the wrench at the handle.
• Apply force smoothly.
• Avoid jerky movements.
• Practice to develop a steady hand.

Regular Maintenance

Regular maintenance extends the life of your torque wrench. Keep the tool clean and in good condition. Proper maintenance ensures accurate calibration.

Here’s a simple maintenance checklist:

Task	Frequency
Clean after every use	Every use
Lubricate moving parts	Monthly
Check for wear and tear	Quarterly
Recalibrate	Annually

Use this checklist to ensure your wrench stays in top shape.

Maintaining Your Torque Wrench

Proper maintenance of your torque wrench ensures its accuracy and longevity. Regular care keeps your tool in top shape and provides reliable results.

Storage Tips

Store your torque wrench in a clean, dry place. This prevents rust and damage. Use the case that came with your wrench for added protection. Always set the wrench to its lowest setting before storing it. This helps maintain its calibration.

• Keep away from moisture.
• Avoid direct sunlight.
• Store in the provided case.

Regular Inspection

Inspect your torque wrench before each use. Check for any signs of wear or damage. Look for cracks or rust on the handle and head. A damaged wrench can give incorrect readings.

Ensure the wrench clicks or signals correctly at the set torque. If it doesn’t, it may need recalibration.

Inspection Points	What to Look For
Handle	Cracks or wear
Head	Rust or damage
Signal	Proper click or signal

Regular inspections and proper storage keep your torque wrench reliable. Follow these tips to maintain your tool’s accuracy and extend its life.

Frequently Asked Questions

• What Is A Torque Wrench Calibration?

Torque wrench calibration ensures accurate readings. It adjusts the wrench to match the manufacturer’s specifications.

• Why Is Torque Wrench Calibration Important?

Calibration maintains accuracy, preventing over-tightening or under-tightening. It ensures safety and optimal performance.

• How Often Should You Calibrate A Torque Wrench?

Calibrate every 6-12 months or after 5000 cycles. Frequent use may require more frequent calibration.

• Can I Calibrate A Torque Wrench At Home?

Yes, with proper tools and knowledge. Follow the manufacturer’s guidelines for best results.

• What Tools Are Needed For Calibration?

You need a calibration device, a sturdy vise, and a reference torque wrench.

Conclusion

Calibrating a torque wrench ensures accuracy and safety. Follow the steps carefully for precise measurements. Regular calibration extends the tool’s lifespan.

Don’t forget to check the manufacturer’s guidelines. Proper maintenance keeps your wrench reliable. Share your calibration tips in the comments!
