The size of the Allen wrench needed for a Moen shower handle is typically 7/64 inches. Always check the specific model for confirmation.
Moen shower handles are popular for their reliability and sleek design. Installing or repairing these handles often requires the right tools to ensure proper functionality.
One of the most crucial tools is the Allen wrench, which is used to tighten or loosen the handle set screw.
Using the correct size, usually 7/64 inches, helps prevent damage to the handle and ensures a secure fit. Knowing the exact size saves time and effort, making the installation or repair process smoother.
Always refer to the user manual for model-specific instructions to ensure the best results.
Credit: www.reddit.com
Identifying Your Moen Shower Handle
Understanding your Moen shower handle is crucial for maintenance or repairs. Different Moen shower handles require different Allen wrench sizes. Identifying the type of handle you have is the first step.
Types Of Moen Shower Handles
Moen offers a variety of shower handles. The most common types include lever handles, knob handles, and cross handles. Each handle type has distinct features.
- Lever Handles: These are long and flat, easy to grip.
- Knob Handles: Round and often clear, offering a classic look.
- Cross Handles: Shaped like a cross, providing a vintage feel.
Locating The Set Screw
The set screw secures the handle to the shower valve. It is usually hidden to maintain the handle’s clean look. Identifying the set screw location is essential for using the correct Allen wrench.
| Handle Type | Set Screw Location |
|---|---|
| Lever Handle | Underneath the handle or behind a decorative cap |
| Knob Handle | Behind the knob, often covered by a cap |
| Cross Handle | At the base of one of the cross arms |
Once you locate the set screw, use the correct Allen wrench size to remove it. This simple step ensures you can easily perform any necessary repairs or replacements.
Why Allen Wrench Size Matters
Choosing the correct Allen wrench size for your Moen shower handle is crucial. It ensures smooth installation and prevents unnecessary damage. An improper size can lead to stripping the screw or causing other issues.
Avoiding Damage
Using the wrong size Allen wrench can damage the screw head. This makes it difficult to remove or adjust the handle later. Damaged screws may need replacing, which adds to your repair costs.
Moen shower handles typically use a 7/64-inch or 3/32-inch Allen wrench. Check the specific model instructions for accuracy. Using the exact size prevents the wrench from slipping and damaging the screw.
Ensuring A Secure Fit
A secure fit is essential for a stable shower handle. Using the correct Allen wrench size ensures the screw is tightly fastened. A loose screw can cause the handle to wobble or fall off.
Here’s a simple table to help you identify the common Allen wrench sizes for Moen shower handles:
| Moen Model | Allen Wrench Size |
|---|---|
| Moen Adler | 7/64-inch |
| Moen Chateau | 3/32-inch |
Ensure you have the right size before starting your project. This will save you time and effort.
Standard Allen Wrench Sizes For Moen Handles
Moen shower handles often require specific Allen wrench sizes. Using the right size ensures proper installation and removal. Below, we discuss the most common sizes and how to measure the wrench.
Most Common Sizes
Moen shower handles typically use Allen wrenches. The most common sizes include:
- 3/32 inch
- 7/64 inch
- 1/8 inch
These sizes fit most Moen shower handle screws. Always check the screw size first. This prevents damage to the screw or handle.
How To Measure The Wrench
Measuring the correct Allen wrench size is simple. Follow these steps:
- Identify the screw head size.
- Use a caliper or ruler to measure the screw head.
- Match the measurement to the corresponding Allen wrench size.
A table for quick reference:
| Screw Head Size | Allen Wrench Size |
|---|---|
| 0.09375 inches | 3/32 inch |
| 0.109375 inches | 7/64 inch |
| 0.125 inches | 1/8 inch |
Always double-check your measurements. This ensures you select the correct wrench size. Accurate measurement saves time and prevents frustration.
Step-by-step Guide To Finding The Right Size
Trying to find the right size Allen wrench for your Moen shower handle? This step-by-step guide will help you. Follow these steps to get the correct size and remove the handle easily.
Tools You’ll Need
- Allen wrench set
- Phillips screwdriver
- Flathead screwdriver
- Needle-nose pliers
- Flashlight
Removing The Handle
Start by turning off the water supply. This step prevents water damage.

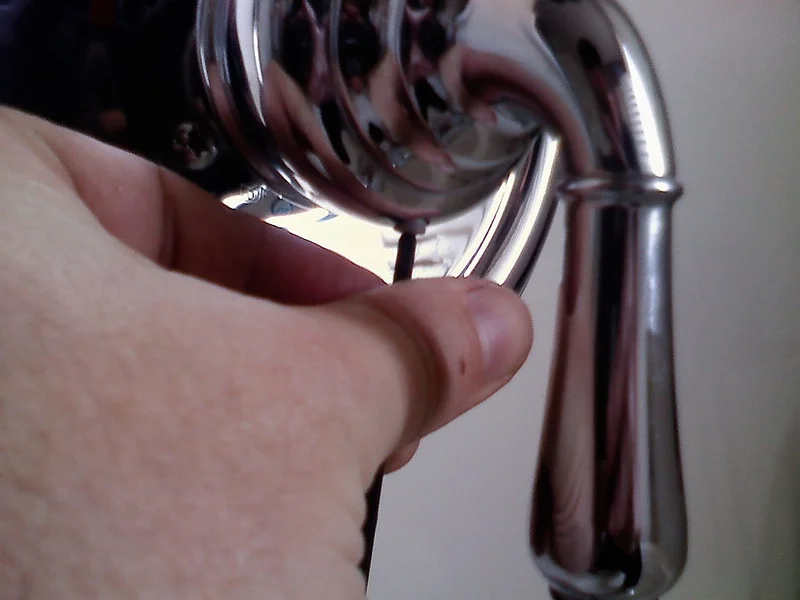

- Locate the small screw on the handle. Use a flashlight if needed.
- Choose the right size Allen wrench from your set. Test different sizes if unsure.
- Insert the Allen wrench into the screw head. Turn counterclockwise to loosen it.
- Once the screw is loose, gently pull the handle off the valve.
Having trouble finding the right Allen wrench size? Here’s a quick reference:
| Model | Allen Wrench Size |
|---|---|
| Moen Posi-Temp | 7/64 inch |
| Moen Moentrol | 3/32 inch |
Use this table as a guide. If your model isn’t listed, start with the smallest wrench and work up.
Troubleshooting Common Problems
Fixing a Moen shower handle can be tricky. Sometimes, you may face common problems. Knowing how to troubleshoot can save time and effort. Let’s explore two common issues: stripped set screws and stuck handles.
Stripped Set Screws
A stripped set screw can cause trouble. The Allen wrench may not grip properly. This can make it hard to remove the handle. Here are some steps to solve this problem:
- Try using a larger Allen wrench to get a better grip.
- If the screw is very damaged, use a screw extractor.
- Apply a few drops of penetrating oil. Wait 15 minutes before trying again.
- Use a rubber band over the screw head to improve grip.
Stuck Handles
A stuck handle can be frustrating. It may not turn or come off easily. Here are some tips to fix a stuck handle:
- Wiggle the handle gently while pulling it outward.
- Use a hairdryer to apply heat. This can help loosen it.
- Apply penetrating oil around the base of the handle. Wait for 15 minutes.
- If it still won’t budge, use a handle puller tool.
These steps should help you troubleshoot common problems. A few tools and patience can solve most issues.
Credit: www.instructables.com
Maintaining Your Moen Shower Handle
Regular maintenance of your Moen shower handle ensures its longevity. Proper care also ensures smooth operation. This guide will help you keep it in top condition.
Regular Checks
Perform regular checks on your Moen shower handle. Look for any signs of wear or damage. Tighten any loose parts with the correct size Allen wrench. For most Moen shower handles, a 7/64-inch Allen wrench is required.
- Check for loose screws.
- Inspect for any leaks.
- Ensure the handle turns smoothly.
Regular checks can prevent bigger issues. They help you catch problems early.
Proper Storage Of Tools
Proper storage of your tools is crucial. Store your Allen wrench in a safe, dry place. This prevents rust and ensures it is always ready for use.
- Keep tools in a toolbox.
- Use a tool organizer for easy access.
- Label your tools for quick identification.
Proper storage extends the life of your tools. It also makes maintenance tasks easier.
| Task | Tool Needed |
|---|---|
| Tighten handle screws | 7/64-inch Allen wrench |
| Inspect for leaks | Visual inspection |
| Check handle movement | Manual check |
Frequently Asked Questions
- What Size Allen Wrench For Moen Shower Handle?
For most Moen shower handles, a 7/64 inch Allen wrench is required.
- Can I Use A Different Size Allen Wrench?
Using the correct size (7/64 inch) ensures proper fit and prevents damage.
- Where To Buy A 7/64 Inch Allen Wrench?
You can find a 7/64 inch Allen wrench at hardware stores or online.
- How To Remove Moen Shower Handle?
Insert the 7/64 inch Allen wrench into the set screw and turn counterclockwise.
- Why Is Allen Wrench Size Important?
Using the correct size prevents stripping the screw and ensures a secure fit.
Conclusion
Finding the right size Allen wrench for your Moen shower handle is essential. Using the correct tool prevents damage and ensures a secure fit. Typically, a 7/64-inch Allen wrench fits Moen shower handles.
Always double-check your model’s specifications. With the right wrench, maintaining your shower handle becomes a hassle-free task.
